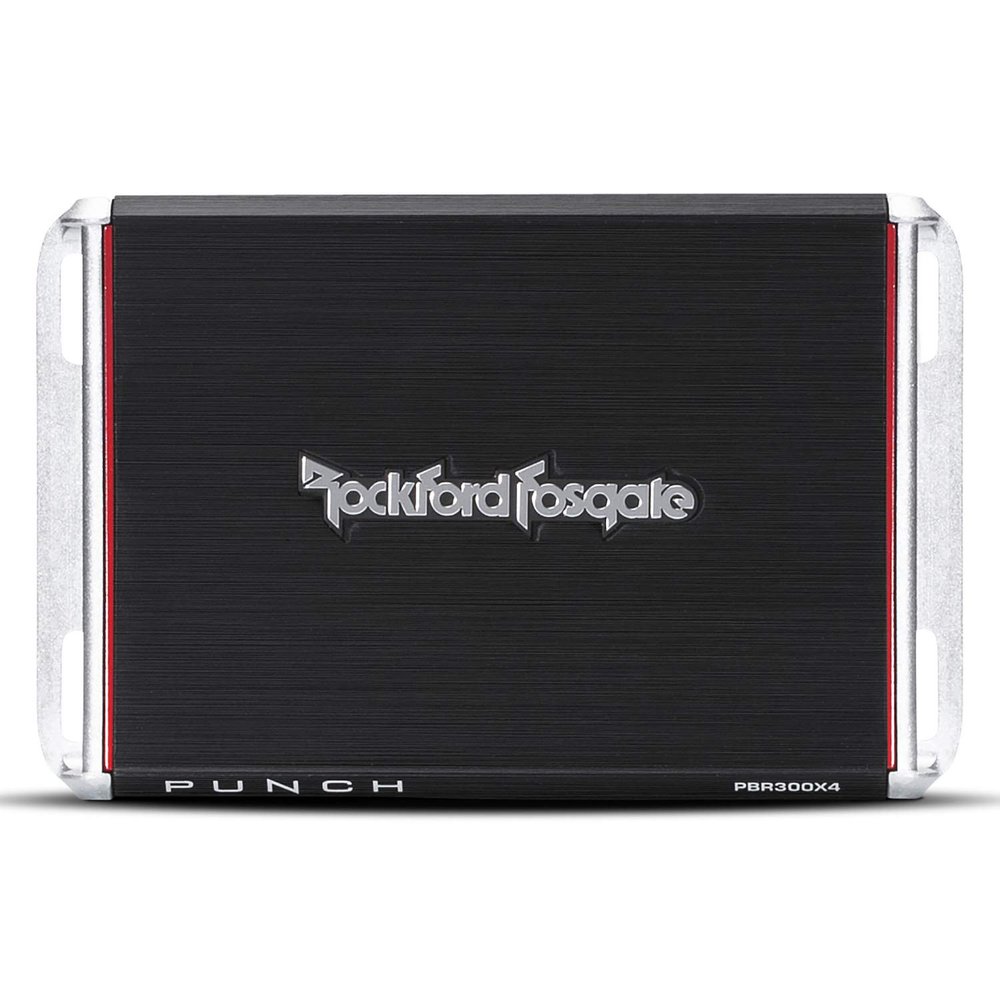

Rockford Fosgate PBR300X4 Punch BRT 300-Watt Ultra Compact 4-Channel Amplifier

Description

• Our ultra-compact (1.53 x 4.25 x 6.75) Punch PBR300X4 is a full-range 4-channel amplifier designed for stereo front/rear systems that packs a Punch with 300 Watts of power without sucking a lot of juice from your electrical system
• Designed to be compact and efficient while providing big power - RMS Power Output: 75 Watts x 4 @ 4-Ohm (4-Ohm only)
• Featuring our Class BR, Rockford Fosgates patented Boosted Rail technology that sips current while retaining a storage reserve for extended bursts of power. Perfect for smaller stealth installations, motorcycles and recreational vehicles
• Featuring high level inputs, MOSFET output stage, variable 4-6 volt hi level DC offset voltage input turn-on control, and 12dB/octave Butterworth crossover
• Famous Rockford Fosgate build quality with a full 1-year warranty when purchased from an authorized Rockford Fosgate reseller

Amazon.com

The PBR300X4 is a full-range 4-channel amplifier designed for stereo front/rear systems that requires little space. Rockford's Boosted Rail Technology provides an ultra efficient-design generating 300 Watts of power, and the amplifier also boasts a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. Great for motorcycles and recreational vehicles. Rockford Fosgate Punch Series Amplification
For over 25 years, Punch amplifiers have set the standard in the car audio amplifier industry and they continue to do so today. It's the reason that they have become the most popular amplifiers in the world. Each of the Punch family amplifiers reproduce sonic perfection along with impressive power in a compact chassis.
A full-range 4-channel amplifier designed for stereo front/rear systems that requires little space. 300 Watts in an Ultra-Compact Amplifier CEA-2006
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings. Discrete Surface Mount
DSM--An industry-leading manufacturing process, DSM utilizes high-speed robotics, high-quality 1% tight-tolerance parts and large board traces. The discrete components are laser etched to meet a particular value and a very low tolerance. This lower tolerance improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature. These superior components are used by aerospace, automotive, and cellular manufacturers. Dynamic Thermal Management
Heat is often inefficiently dissipated across a heatsink causing "hot spots". This impacts important design goals, which are: Keeping internal components cool. Maximizing potential of all components. Reducing distortion for better sound quality. Increasing efficiency to produce more power.
Rockford Fosgate engineers have developed an award winning cooling design called DTM. This patent pending design seamlessly manages the output of power supply temperatures, while evenly distributing the excess heat across the entire amplifier. MEHSA3
MEHSA3 (Maximum Efficiency Heat Sink Application--gen. 3) is a proprietary process that yields up to five times better heat transfer than traditional FET mounting techniques, using the exact same components. A multi-layer insulated metal substrate operating with minimal thermal resistance spreads heat both downward & outward to quickly dissipate heat from each device across the heatsink. This process combined with our optimized heatsink designs, DSM (Discrete Surface Mount) technology and MOSFET devices, allows Rockford Fosgate to squeeze more watts per cubic inch from every output device as well as provide consistent thermal stability. The 3rd generation creates a dielectric layer between the ceramic topside and the aluminum base that retains all of the electrical isolation and capacitive coupling of the original MEHSA material increasing it's thermal conductivity. The higher power handling results in a 20% reduction in thermal impedance. Discrete surface mount componenents for ultra-efficient operation and lower operating temperatures. NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances. Punch EQ2
In the early 70's, Jim Fosgate studied the acoustical properties of automobiles. Utilizing a real-time analyzer and pink noise, he would graph out the acoustical characteristics of each car he tested. Jim discovered three problems that were common to all cars: A midbass hump between 100-275Hz A steep roll-off of high frequencies from 2kHz up to 20kHz Reduced bass response below 50Hz
The Punch EQ on-board equalization circuit helps correct for these acoustical deficiencies in the listening environment. When set to Low-Pass(LP) operation, it becomes a variable Bass Boost. When set to High-Pass (HP) operation, it acts as a variable Mid-Bass and Treble Boost. When set to All Pass (AP) operation, both Bass and Treble frequencies are boosted. About Rockford Fosgate
Setting the standard for excellence in the audio industry, the Rockford Corporation markets and distributes high-performance audio systems for the mobile audio aftermarket and OEM market. Headquartered in Tempe, Ariz., Rockford Corporation is a publicly traded company and manufactures its products under four brands: Rockford Fosgate, Rockford Acoustic Design, Lightning Audio and InstallEdge.com.
PBR300X4 Specifications
Number of Channels: 4 Rated Power: 75 Watts x 4 @ 4-Ohms Total Power: 300 Watts Dynamic Power: 300 Watts @ 0 degrees RES
Bridgeable: No Crossover Controls: Selectable 80Hz LP/AP/80Hz HP @ 12dB/Octave Signal Input: Hi-Level: Variable DC offset sensitivity
High-Level: harness
Low-Level: 2 Pair RCA Power Input Connector: Block Harness Power Wire Gauge: 10 AWG Speaker Output Connector: 4-Pin Harness Speaker Wire Gauge: Harn
