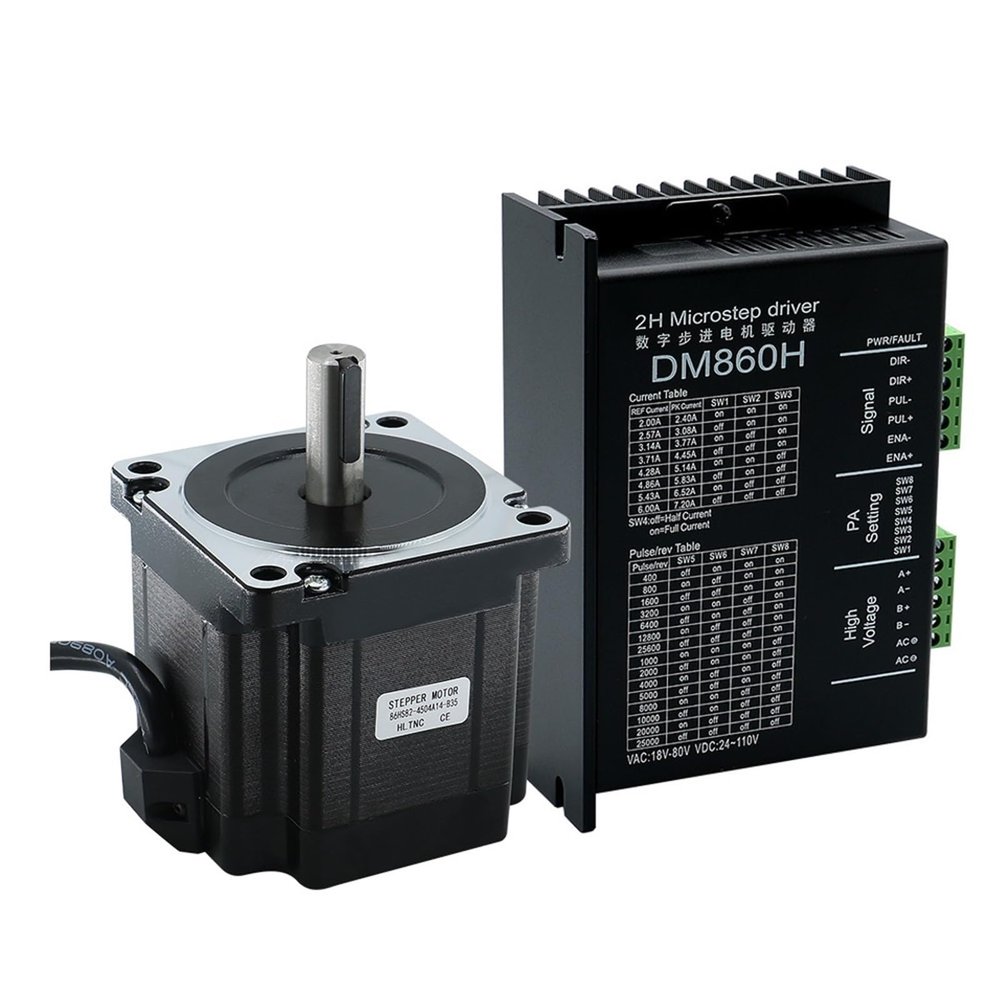

JOCCOS Nema34 14mm Single Dual Shaft 4-lead 4.5NM 4.5A Stepper Motor With DM860H Hybrid DC Driver for Engraver Milling Router

Description

• Motor Drives
• Nema34 14mm Single Dual Shaft 4-lead 4.5NM 4.5A Stepper Motor With DM860H Hybrid DC Driver for Engraver Milling Router

Motor Drives
1* Nema34 86x82mm 4.5Nm Stepper Motor
1* DM860H or DMA860H Driver
Hybrid Stepper Motor Type 86HS82
Specifications
Diagram
Step Angle
1.8 5%
Current
4.5A
Phase No.
2 Resistance
0.3210%
Insulation Resistance
100Mohm(500V DC)
Inductance
2.820% mH
Insulation Class
B Holding
4.5Nm
Microstep Driver DM860H
Specifications
Name
DM860H Stepper Motor Driver
Input Voltage
VAC:18-80V VDC:24-110V
Output Current
2.4-7.2A 8Pin Adjustable. Resolving Power 0.5A
Dirve Mode
Double Constant Current PWM Drive Output
Insulation Resistance
Normal Pressure And Temperature larger than 500
Insulation Strength
Normal Pressure And Temperature 500V/Min
Weight
About 550g
