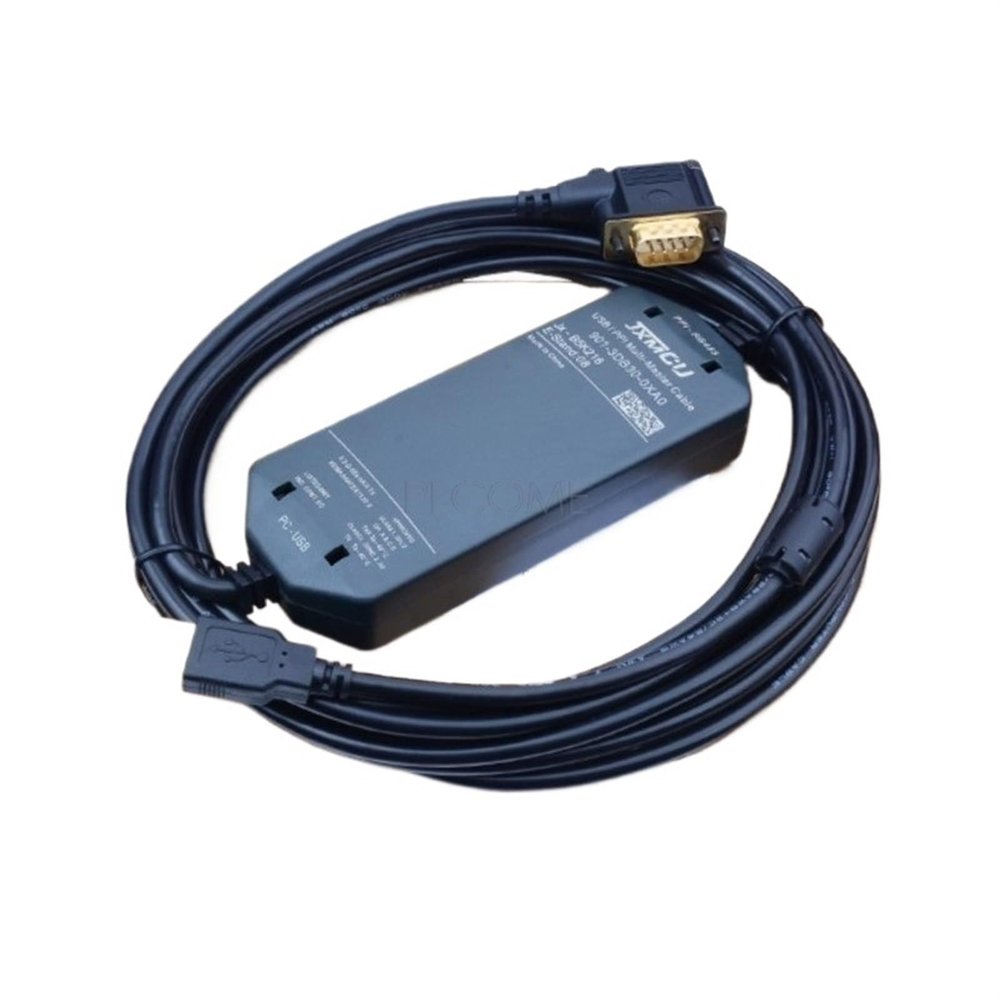

Full Protection USB-PPI Multi-Master Programming Cable for S7-200 Smart700/1000, 6ES7 901-3DB30-0XA0(Standard version)

Description

• Cables & Cords
• Full Protection USB-PPI Multi-Master Programming Cable for S7-200 Smart700/1000, 6ES7 901-3DB30-0XA0

Cables & Cords
Please note, this adapter may not support HMI communication if you use ProSave software, but wincc flexible is ok.
Optoelectronic isolated USB S7-200PLC multi-master station PPI programming cable,directly use the STEP7 MicroWIN software to communicate,no need to install driver,support PPI,multi-master station PPI and advanced PPI,support 187.5Kbps high speed communication,just the same as 6ES7 901-3DB30-0XA0,3 meters,with communication indicator.
Summary:
USB / PPIM + is the PPI Multi-Master programming Cable which with USB interface, to realize the level conversion and various of PPI protocol conversion from USB to RS485.Many USB / PPI cable on the market simulate USB to virtual serial (COM port) to realize the communications, it's commonly known as "pseudo-USB interface". The cable only convert the level from USB to RS485, can only support the normal PPI Protocol. But the USB / PPIM + is the real USB interface cable, without installing drivers, directly use the USB option in STEP7 Micre / WIN software, support PPI, Advanced PPI,and Multiple Master Network Protocol. The cable support the 187.5 Kbps high-speed communications, and take charge of the Multiple Master Network.Token handling is performed in the cable giving faster and more reliable access to multi-mode networks.
This cable is100% compatible with PPI Multi-Master USB Cable 6ES7 901-3DB30-0XA0.
The two-color LED on the converter box indicates data's transceiving and power status.
USB/PPIM+ is designed for industrial-type isolation cable. USB port and RS485 ports are equipped with surge protection and anti-lightning protection circuitry, which can be . It's applicable to the entire S7-200 Series It's particularly suited to the industrial scene which the communications interface is more easily damaged because of the greater interference. The protection circuit ensures the safe operation of the system.
Features
Support PPI, Advanced PPI, Multi-
