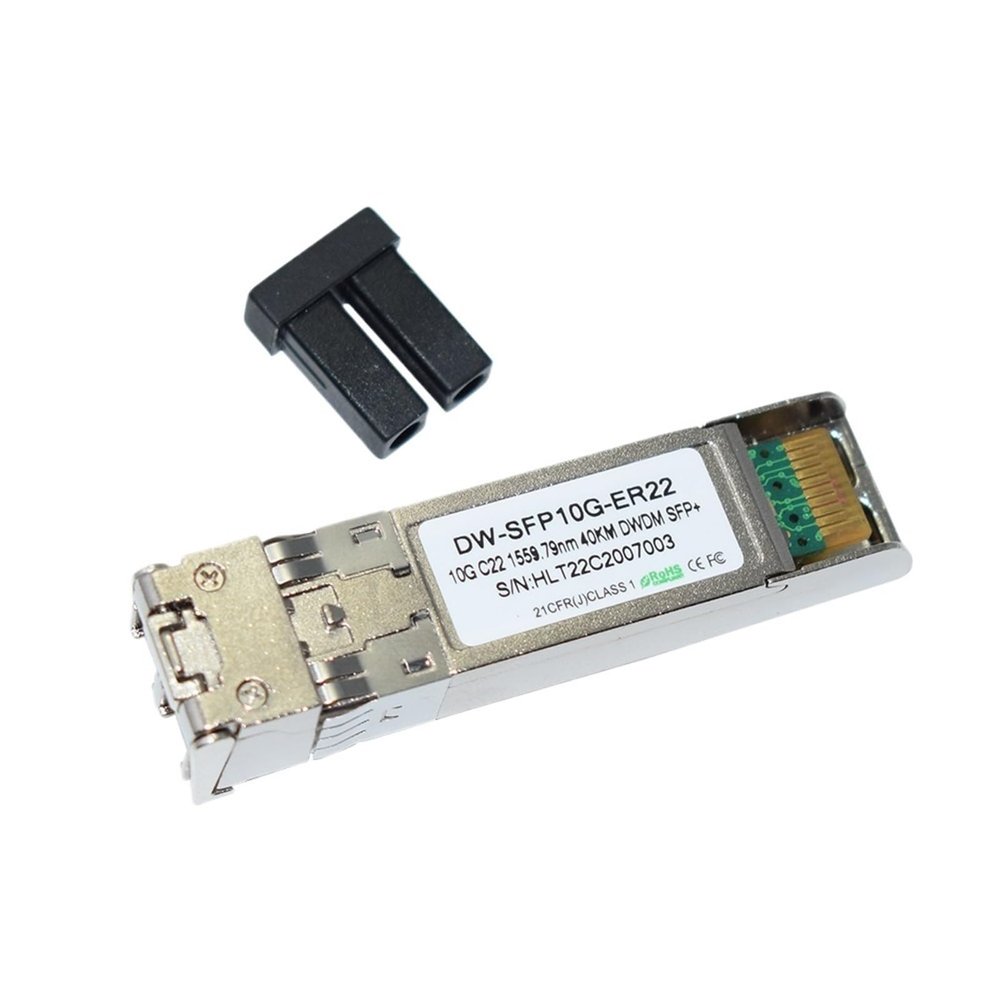

CIZVVEOC DWDM SFP DW-SFP10G-ER C22 1559.79nm 40km 10G DWDM System DOM SFP Transceiver

Description

• DWDM SFP DW-SFP10G-ER C22 1559.79nm 40km 10G DWDM System DOM SFP Transceiver

DWDM 10G C22 1559.79nm 40km DW-SFP10G-ER Network Compatible DOM DWDM SFP+
10G DWDM SFP+ C22 1559.79nm 40KM
General
HLSDXX1XL-C(I)D40 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single Mode fiber. They are compliant with SFF- 8431,SFF-8432 and ITU-T G.698.1. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication.
This transceiver consists of two sections: The transmitter section incorporates a cooled EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Product Feature
Supports up to 9.95 to 11.3Gbpsbit rates
Duplex LC Connector
-pluggable SFP+ footprint
Cooled EML transmitter and PIN-TIA receiver
Applicable for 40km SMF connection
<; 1.2W
100GHz channel spacing
Digital Diagnostic Monitor Interface
Optical interface compliant to ITU-T 694.1& G6981
Electrical interface compliant to SFF-8431&SFF8432
Operating case temperature
Standard: 0to +70C
Industrial: -5 to +80C
Application
10G Ethernet
2x,4x, 8x Fiber Channel
ITU-T G.698.1
Other Optical links
10G DWDM Transceivers
DWDM XFP(10G)
DWDM XFP ER
10G
15XX.XXnm
40KM
DWDM XFP
0~70c
DWDM XFP ZR
10G
15XX.XXnm
80KM
DWDM XFP
0~70c
DWDM SFP+(10G)
DWDM SFP ER
10G
15XX.XXnm
40KM
DWDM SFP+
0~70c
DWDM SFP ZR
10G
15XX.XXnm
80KM
DWDM SFP+
0~70c
DWDM XENPAK(10G)
DWDM XENPAK E
