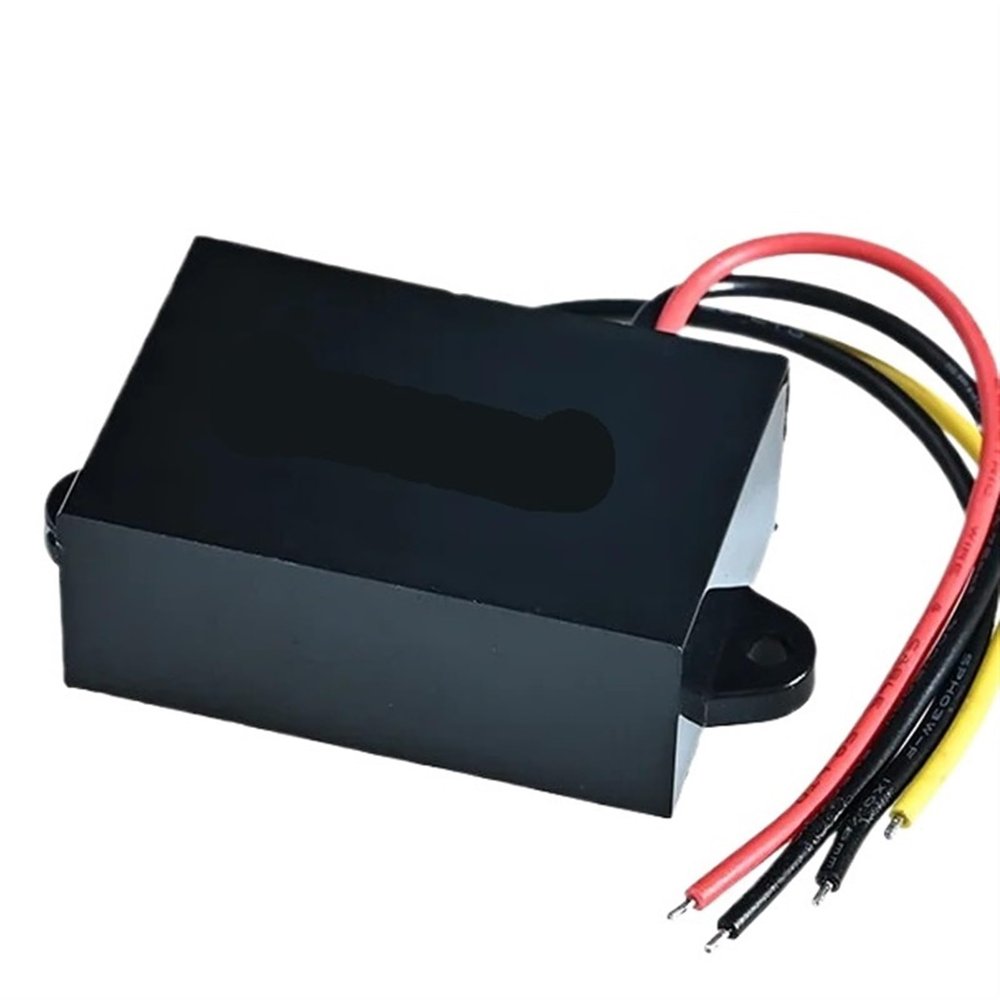

72V 60V 48V 36V 24V to 12V 3A 5A 8A 10A Step Down Voltage Auto Car Bike Power Converter 24 36 48 60 72 Volt 12 Volt(DC 36V 48V (20-60V),DC 12V 3A 36W Max)

Description

• Power Converters
• 72V 60V 48V 36V 24V to 12V 3A 5A 8A 10A Step Down Voltage Auto Car Bike Power Converter 24 36 48 60 72 Volt 12 Volt

Power Converters
72V 60V 48V 36V 24V to 12V 3A 5A 8A 10A Step Down Voltage Auto Car Bike Power Converter 24 36 48 60 72 Volt 12 Volt
Larger Power Output, Click below link to get it.
72V 60V 48V 36V 24V to 12V 10A~20A
72V 60V 48V 36V 24V to 12V 22A~26A
Specification
Product Name
72V 60V 48V 36V 24V to 12V 3A 5A 8A 10A Converter
Model No.
F**J12V*A3S(1st** for max input voltage,2nd* for output current)
Module Properties
non-isolated module
Rectification
rectification
Input (cable length: 12cm)
Input Voltage
24V 36V 48V 60V 72V
InputVoltage Range
30-90V / 20-72V / 20-60V / 17-35V
Output(cable length: 12cm)
Output Voltage
12V
Output Current
3A / 5A/ 8A / 10A Max
Output Power
36W / 60W / 96W / 120W Max
Conversion Efficiency
>93%
Voltage regulation
1%
Load regulation
2%
Ripple (Full load test)
<; 150mV
No-loadcurrent
<;100mA
Working Temperature
-40~80( If ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)
Waterproof Rating
IP68
Protection
Over-current protection / Overheating protection / short circuit protection / waterproof IP68 design, anti-shock protection
Application
mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on.
Case Material
ABS Plastic
Product Size (L x W x H)
58*40*22mm
Product Weight
100g
