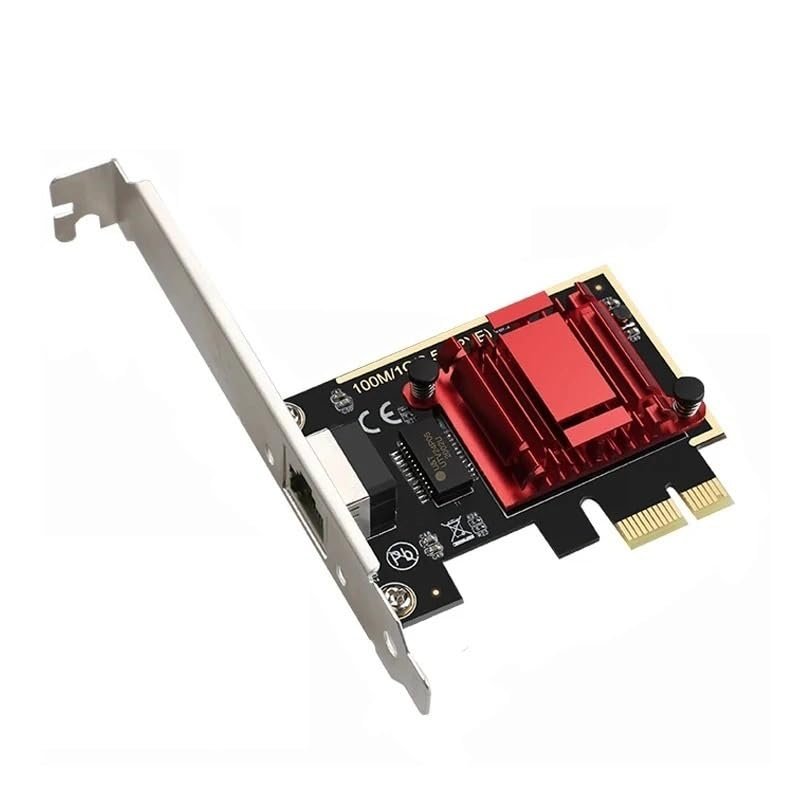

2.5G PCI-E to RJ45 Network Card RTL8125B Chip Gigabit Ethernet PCI Express Network Card 10/100/2500Mbps 1Gbps/2.5Gbps for Win7/8/10/11 and Linux

Description

• 2.5 Gigabit High-Speed Ethernet: Unleash your network's full potential with blazing-fast 2.5Gbps bandwidth, 2.5x faster than standard Gigabit. Also fully backward compatible with 10/100/1000Mbps networks, ensuring seamless integration and a significant boost for online gaming, 4K streaming, and large file transfers.
• Premium RTL8125B Chipset with Advanced Features: Built around the reliable Realtek RTL8125B controller. Supports modern standards like ECMA-393 for power efficiency, Latency Tolerance Reporting (LTR), and features crossover detection, auto-correction, and robust thermal management for stable, low-latency performance.
• Effortless Plug-and-Play Installation: Features a single RJ45 port with Auto-MDI/MDIX, eliminating the need for crossover cables. Simply install the card into an available PCI Express x1 slot (supports PCIe 2.1/3.0/4.0). The low-profile bracket design ensures compatibility with most desktop PC cases.
• Extensive OS & Wake-on-LAN Support: Offers broad driver compatibility for Windows 11/10/8.1/7 (32/64-bit), Windows Server, Linux, ESXi, and even RouterOS (ROS). Includes Wake-on-LAN and "RealWoW!" technology for convenient remote wake-up over the internet.
• Reliable & Stable Connectivity: Engineered for durability with a high MTBF (Mean Time Between Failures) of 376,212 hours. The efficient "Green" package supports effective heat dissipation, ensuring stable operation in an ambient temperature range of 0C to 60C. Customizable LED indicators provide clear link/activity and speed status.

Gigabit PCI-E Network Card Ethernet PCI Express Adapter gaming adaptive for Desktop RJ-45 LAN Adapter 2.5Gbps RJ45 port
Product Description
lIntegrated 10/100/1000M/2.5G transceiver.
lSupports 2.5G and 1G Lite mode.
lAuto-Negotiation with Extended Next Page capability(XNP).
lSupports PCI Express 2.1.
lSupports pair swap/polarity/skew correction
lConfigurable MDI port ordering(MDI swap) for easy PCB layout.
lCrossover Detection&AutoCorrection
lSupports 1Lane 25/5Gbps PCI Express Bus.
lEmbedded OTP memory can replace external EEPROM
lLAN disable with GPIO pin.
lCustomized LEDs.
lControllable LED Blinking Frequency and Duty Cycle.
lSelf-Loopback diagnostic capability.
lThermal management.
l88-pin QFN"Green"package.
lSerial EEPROM.
lSupports 32Mbytes External Serial Peripheral Interface(SPI) Flash.
lSupports ECMA-393 ProxZzzy Standard for sleeping hosts.
lSupports LTR(Latency Tolerance Reporting)
lWake-On-LAN and"RealWoW!"Technology(remote wake-up) support.
Chipset
RTL8125B
Port number
1* RJ45
Standard
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz
Network media
10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP
IEEE Standards
IEEE 802.11a/b/g/n/ac
Data rate
10/100/1G/2.5Gbps
Interface
PCI Express 1x slot
Auto MDIX
YES
Full Duplex Support
YES
MTBF
376,212 Hours
LED Indicator
Link/Act, Speed
Dimension
71.5*50*1.6mm
Support OS
Windows11(32/64), Windows10(32/64), Win7 (32/64), Win8,8.1 (32/64)
Windows Server 2012, 2008
LINUX up to 4.15
ROS
ESXi
Environment
Operating Temperature: 0 -60
==========
Frequency : None
Heat dissipation : Support
Wireless Communication Standard : None
Frequency Band Class : None
Bluetooth Protocol : No support
Wired socket : PCI-E
Wireless socket : None
Wired transmission rate : 2.5G
Wired Interfaces : RJ45
Model Name : 2.5G
Wireless transmission rate : None
High-concerned chemical : None
Lan Transmission Rate : 1000M Ethernet
Applicable Network Type : Gigabit Ethernet
Wireless Protocol : 802.11n,802.11ax(802.11ax),802.11a/g,802.11ac
Certification : CE
Package : Yes
Application : Desktop
Interface Type : PCI Express
Adapter Socket : RJ45
Kind : Internal
Transmission Rate : 2500bps
Type : Wired
Origin : Mainland China
Chip : RTL8125B
Support OS : Windows 7/8/10/11, ROS,ESXi,Linux
Standard : IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz
Network media : 10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP
Data rate : 10M/100M/1G/2.5Gbps
Auto MDIX : YES
Full Duplex Support : YES
LED Indicator : Link/Act, Speed
Environment : Operating Temperature: 0 -60
